Janus Roll UP Door Model 2000 / 2001

Janus Model 2000 / 2000I Commercial Sheet Door

Austin Building Systems (BuildMetal.com) discounts the Janus Roll Up Door Model 2000. Brochure and Installation Guide available below.

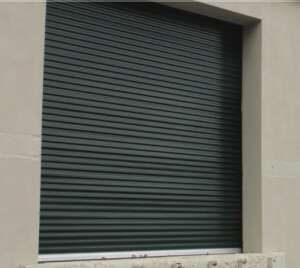

Janus 2000

3rd Generation Door

General Description


• Utilizes 12” drum wheel
• Maximum opening size of 12’wide x 18’ high (216 sq.ft.)
• Push-up, hand chain and electric operations

Curtain

• 26-gauge galvanized corrugated steel
• Grade 80 galvanized steel
• 20 standard colors (special colors upon request for a nominal upcharge)
• Super Durable polyester paint coatings, which are corrosion resistant
• Wash coat over primer interior side
• 40-year film integrity warranty — up to 25-year chalk and fade
• Flexible nylon wear strips

Guides

• 16 gauge galvanized
• Universal jamb mount
• Vinyl guide wear strip
• Bolt on head stop ¼” thick steel
• Pre-punched for lock and attachment bolts
• 2 ¼” guide depth

Bottom Bar

• 24 gauge acrylic-coated galvalumed roll formed steel
• 2” x 1 ½” galvanized angle
• Bulb astragal (Durometer 75)
• Stainless steel nuts and bolts

Hardware

• Bottom bar mounted 10 gauge slide locks – 2 per door
• Bottom bar mounted 16 gauge step plate – 2 per door
• 12 gauge door mounting brackets
• 1-5/16” tension holding device

Axle/Torque Tube

• 1-5/16” O.D. steel axle, 14-gauge
• Oil tempered torsion springs conforming to ASTM A229
• 16-gauge, 12” diameter galvanized drum
• Low friction, grease-filled steel ball bearings staked in each drum
• 26 gauge spiral torque tubing that houses axle assembly

Options

• Insulation Series 2000 I (R-value 4)
• Header seal
• Top draft stop
• Side draft stop
• Chain hoist 5.7:1 reduction
• Electric operator
• Vision panels (17”x 5”)
• Hood
• Steel mounting plates
• Stainless steel mini latch

Roll-Up Doors

Austin Building Systems provides high quality commercial roll-up doors as either a stand alone purchase or to accompany a mini storage or commercial steel building. As a wholesaler we are able to pass along savings to our clients with quick turnarounds on delivery.
