Janus Roll Up Doors Model 3652

Janus Roll Up Doors Model 3652

Roll Up Doors > Commercial Sheet Doors

The 3652 Commercial Model is a certified wind load rated rolling sheet door that meets the most stringent building codes, offering proven strength, smooth operation, quick installation, and reliable performance backed by a one-year warranty.

Get a QuoteProduct Resources

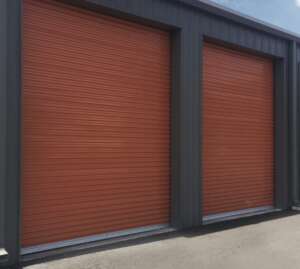

janus 3652



General Description

  • Designed and tested to meet wind load requirements of the International Building Code and Florida Building Code (FL21450)
  • Utilizes 12” drum wheel
  • Maximum opening size of 18’ wide x 14 ’ high (252 sq.ft.)
  • Push-up, hand chain and electric operations
  • PSF Ratings: +36 PSF and -40 PSF for opening widths of 12’, Ratings vary for other opening widths; consult factory

Curtain

  • 26-gauge galvanized corrugated steel
  • Grade 80 galvanized steel
  • Over 30 Color Options
  • Super Durable polyester paint coatings, which are corrosion resistant
  • Wash coat over primer interior side
  • 40-year film integrity warranty — up to 30-year chalk and fade
  • Flexible nylon wear strips
  • Nylon windlock

Guides

  • 14 gauge galvanized steel guide
  • Bolt on head stop ¼” thick steel
  • 2″ guide depth
  • Pre-punched for lock and attachment bolts
  • Universal jamb mount

Bottom Bar

  • 24 gauge acrylic-coated galvalumed roll formed steel
  • 2” x 1 ½” galvanized angle
  • Bulb astragal (Durometer 75)
  • Stainless steel nuts and bolts

Hardware

  • Bottom bar mounted 10 gauge slide locks – 2 per door
  • Bottom bar mounted 16 gauge step plate – 2 per door
  • 12 gauge door mounting brackets
  • 1-5/16” tension holding device

Axle/Torque Tube

  • 16-gauge, 12” diameter galvanized drum
  • Low friction, grease-filled steel ball bearings staked in each drum
  • 26 gauge spiral torque tubing that houses axle assembly

Options

  • Insulation Series 3652 I
  • Top draft stop
  • Side draft stop
  • Header seal
  • Chain hoist 5.7:1 reduction
  • Electric operator
  • Hood
  • Steel mounting plates
  • Stainless steel mini latch
