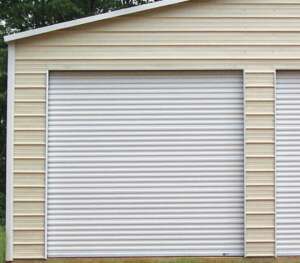

Austin Building Systems (BuildMetal.com) is a proud reseller for the Janus Rolling Sheet Door model 1000/1100. These commercial sheet doors can be used on a wide range of commercial steel buildings and pre-engineered metal buildings. Listed are just a few building types these roll up doors can work with.
Agricultural Buildings
Commercial Buildings
Garages
Agricultural Storage
Self Storage
Warehouses
Auto garages
Boat Storage
Industrial Steel Buildings
Auto Repair Shops
Boat & RV Storage
Airplane Hangars
Commercial Roll up doors
General Description
• Pre-assembled for time and money savings
• Utilizes 9 ½” diameter drum wheel
• Maximum opening size of 12’ wide x 14’ high (168 sq.ft.)
• Push-up, hand chain and internal electric operations
• Reduced drive chain hoist is right hand only
Curtain
• 26-gauge galvanized corrugated steel
• Grade 80 steel
• 20 standard colors (special colors upon request for a nominal upcharge)
• Super Durable Polyester paint coatings, which are corrosion resistant
• Wash coat over primer interior side
• 40-year film integrity warranty — up to 25-year chalk and fade
• Flexible nylon wear strips
Guides
• 16 gauge galvanized
• Vinyl guide wear strip
• Bolt on head stop ¼” thick steel
• 2 ¼” guide depth
• Pre-punched for lock
• Universal jamb mount
Bottom Bar
• 24 gauge acrylic-coated galvalumed roll formed steel
• 2” x 1 ½” galvanized angle
• Bulb astragal (Durometer 75)
• Stainless steel bolts
Hardware
• Bottom bar mounted 12 gauge slide locks – 2 per door
• Bottom bar mounted 16 gauge step plate – 2 per door
• 12 gauge door mounting brackets
• Ratchet tensioner device
Axle/Torque Tube
• 1” O.D. steel axle, 12-gauge
• Oil tempered torsion springs conforming to ASTM A229
• 18-gauge, 9 ½” diameter galvanized drum
• Low friction, grease-filled steel ball bearings staked in each drum
• 26 gauge spiral torque tubing that houses axle assembly
Options
• Insulation Series 1000I (R-value 4)
• Top draft stop
• Side draft stop
• Header seal
• Chain hoist 4:1 reduction
• Internal electric operator
• Hood
• Stainless steel mini latch
